3.3. eSim Gallery Examples¶

eSim gallery has 6 example circuits. You can open, re-design, save, and simulate them. These are listed below.

3.3.1. Voltage Divider¶

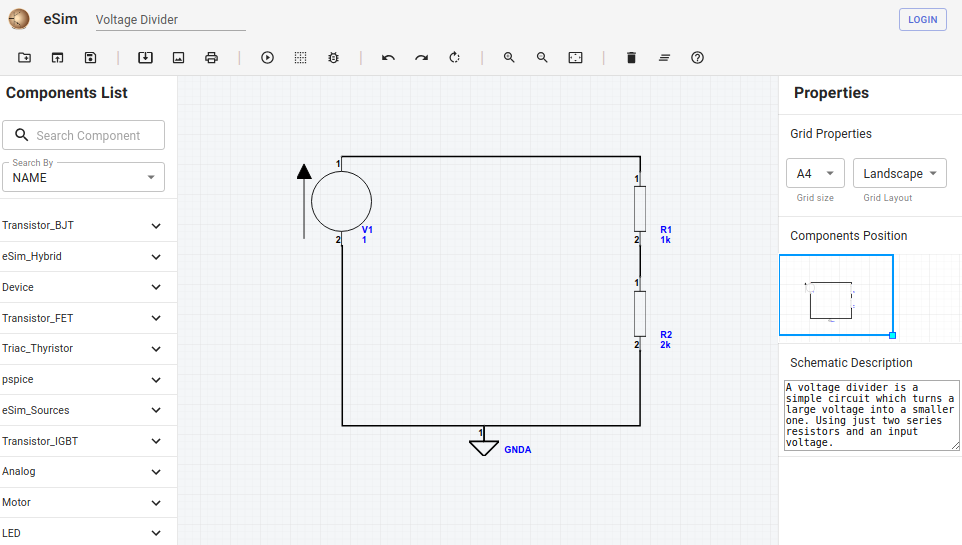

../_images/Voltage_Divider.png

Simulation Type: DC Solver
Simulation Parameters: None

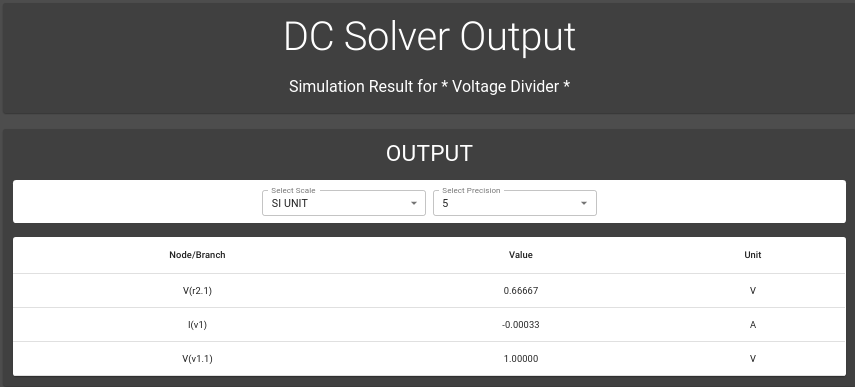

Simulation

3.3.2. RC Circuit¶

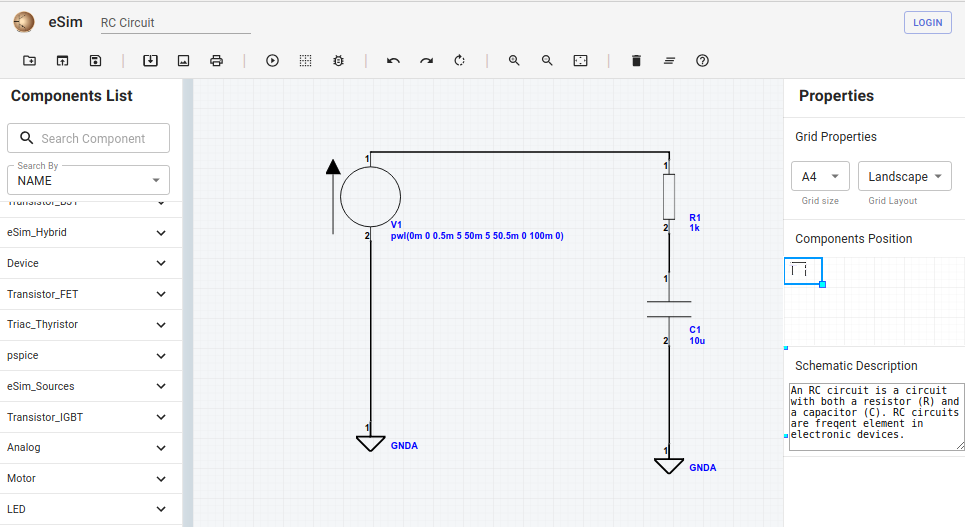

../_images/RC_Circuit.png

Simulation Type: Transient Analysis
Simulation Parameters
- Start Time: 0
- Stop Time: 100m
- Step Time: 10m

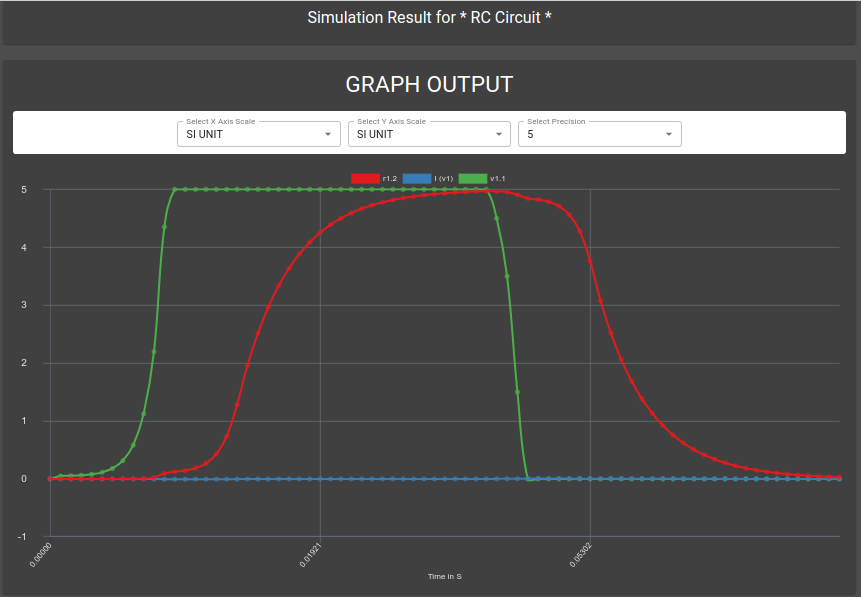

Simulation

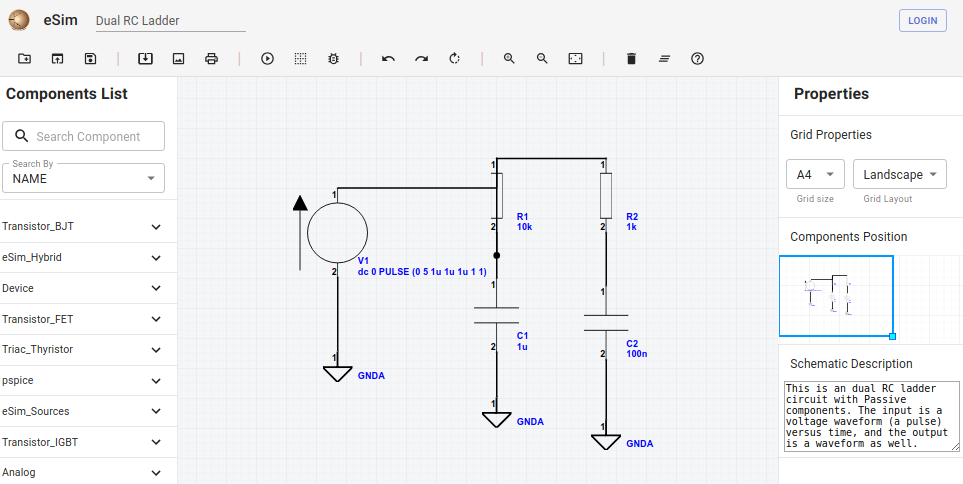

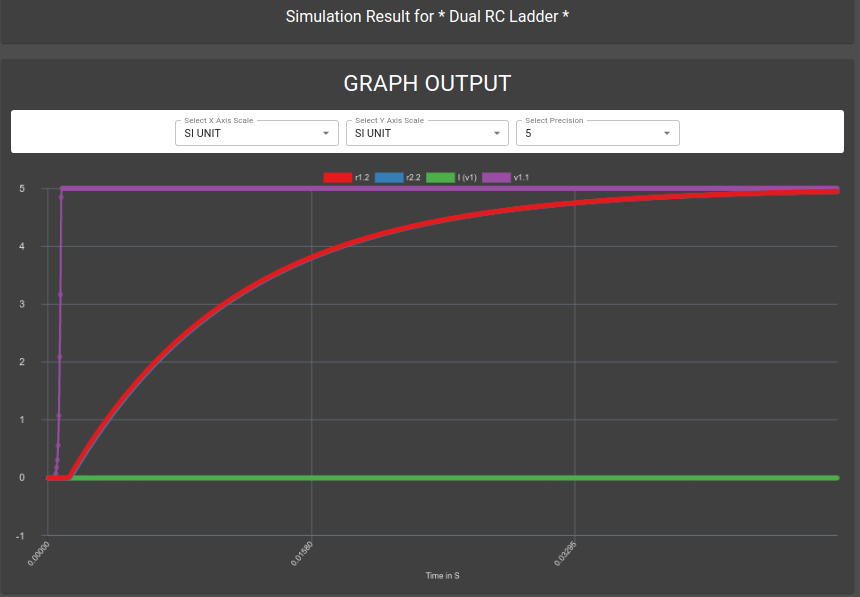

3.3.3. Dual RC Ladder¶

../_images/Dual_RC_Ladder.png

Simulation Type: Transient Analysis
Simulation Parameters
- Start Time: 0
- Stop Time: 50m
- Step Time: 50u
Simulation

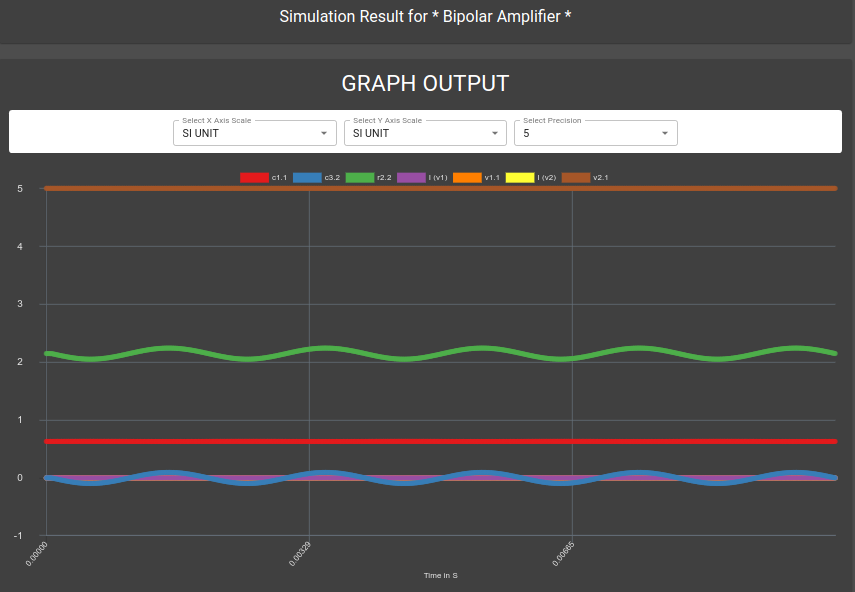

3.3.4. Bipolar Amplifier¶

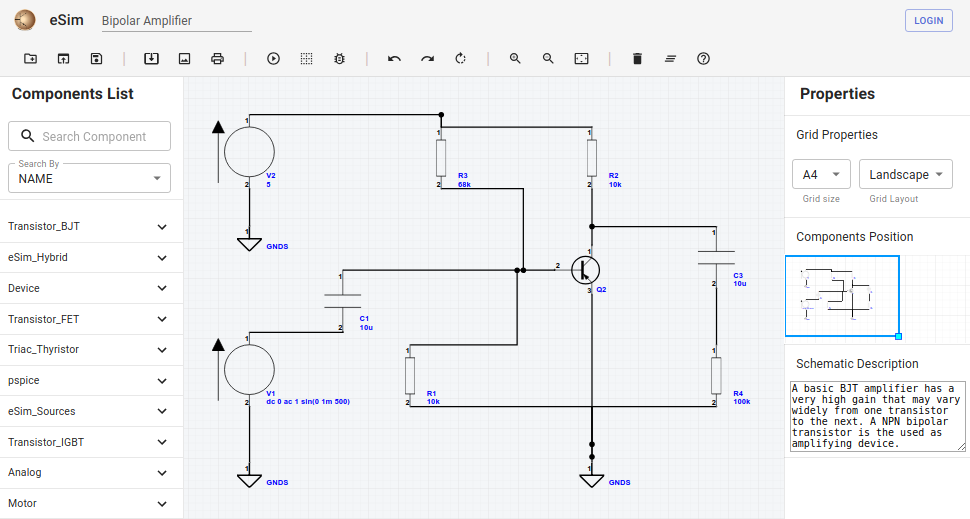

../_images/Bipolar_Amplifier.png

Simulation Type: Transient Analysis
Simulation Parameters
- Start Time: 0
- Stop Time: 10m
- Step Time: 10u
Simulation

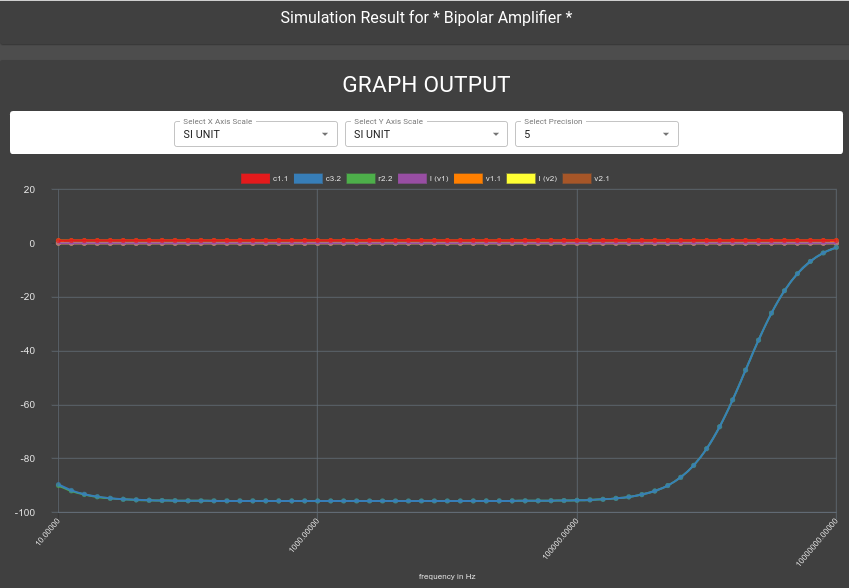

Simulation Type: AC Analysis
Simulation Parameters
- Type: Decade
- Points: 10
- Start frequency: 10
- Stop frequency: 10Meg
Simulation

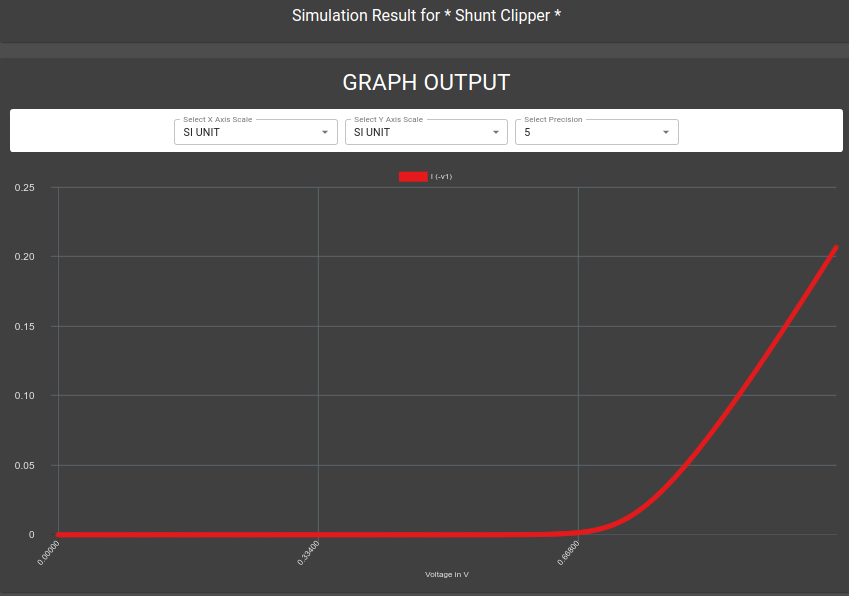

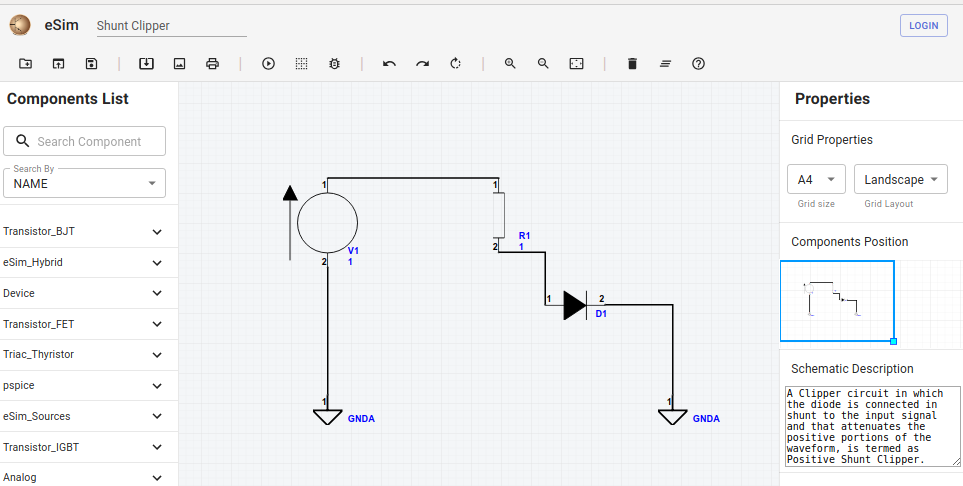

3.3.5. Shunt Clipper¶

../_images/Shunt_Clipper.png

Simulation Type: DC Sweep
Simulation Parameters
- Component: V1
- Start Voltage: 0
- Stop Voltage: 1
- Step Voltage: 1m
Add Expression: -v1#branch
Simulation

3.3.6. RC Circuit Parallel¶

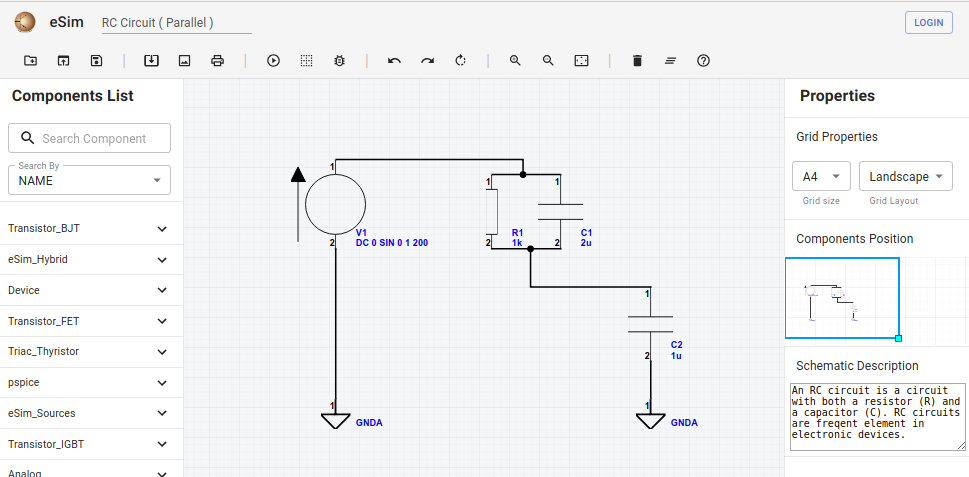

../_images/RC_Circuit_Parallel.png

Simulation Type: Transient Analysis
Simulation Parameters
- Start Time: 0
- Stop Time: 30m
- Step Time: 10u

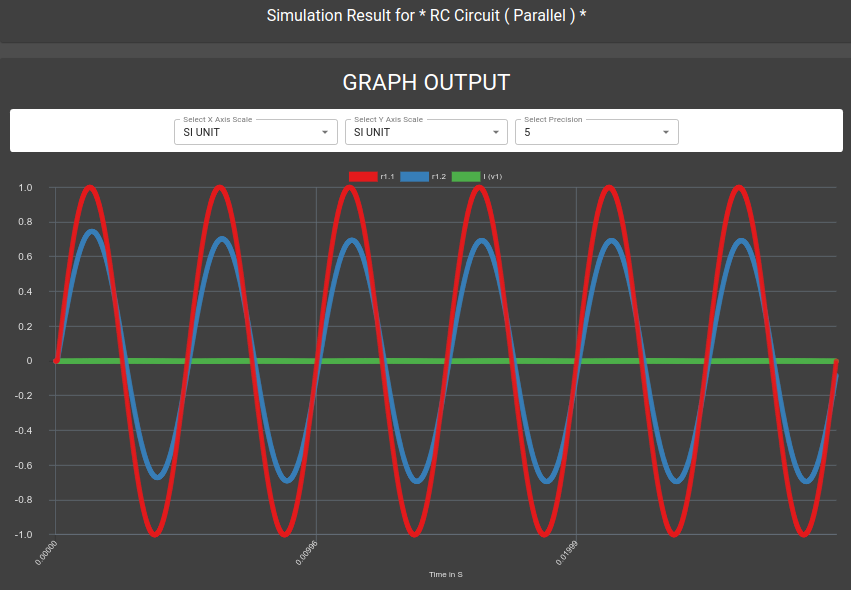

Simulation
